Description

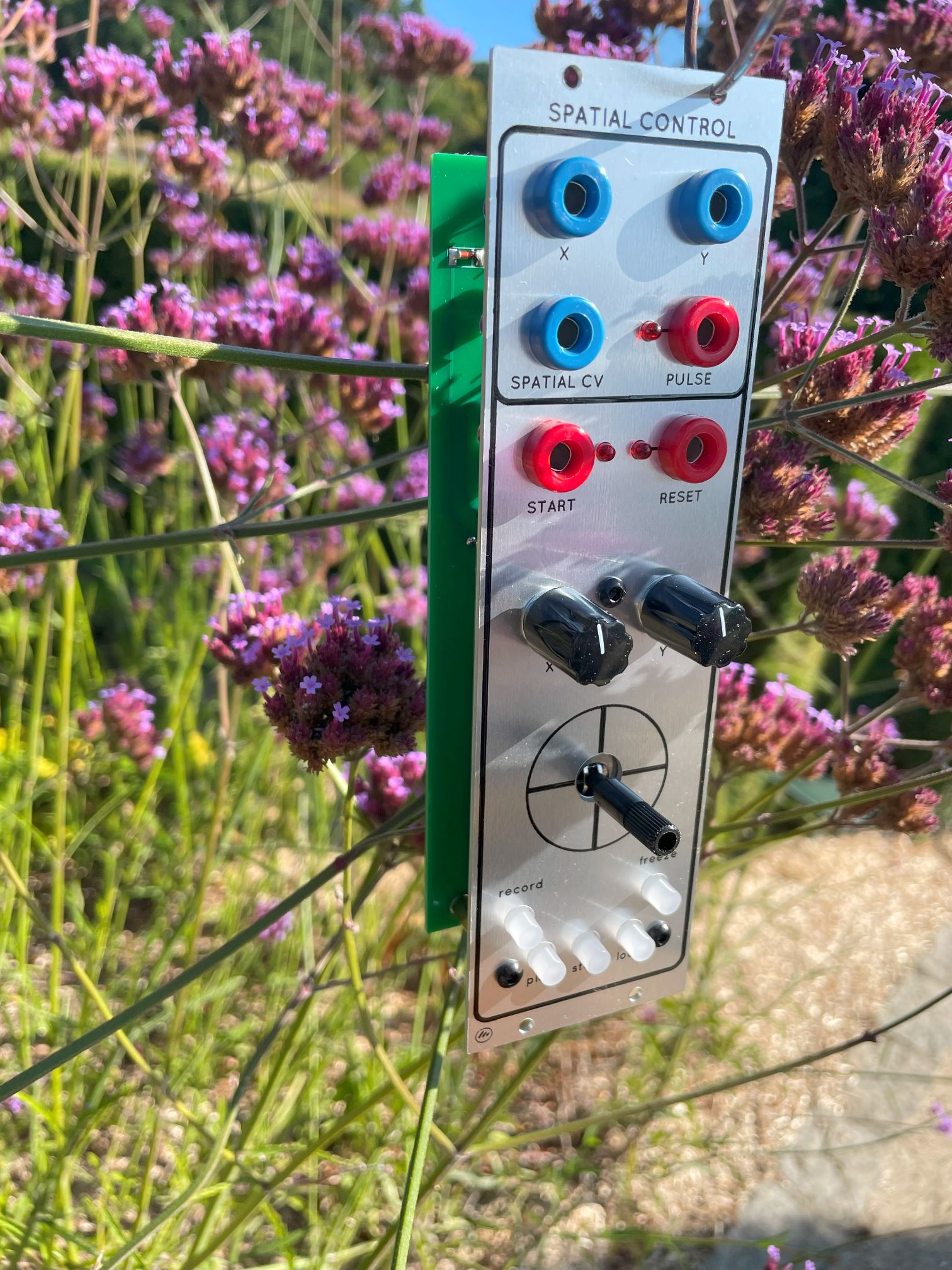

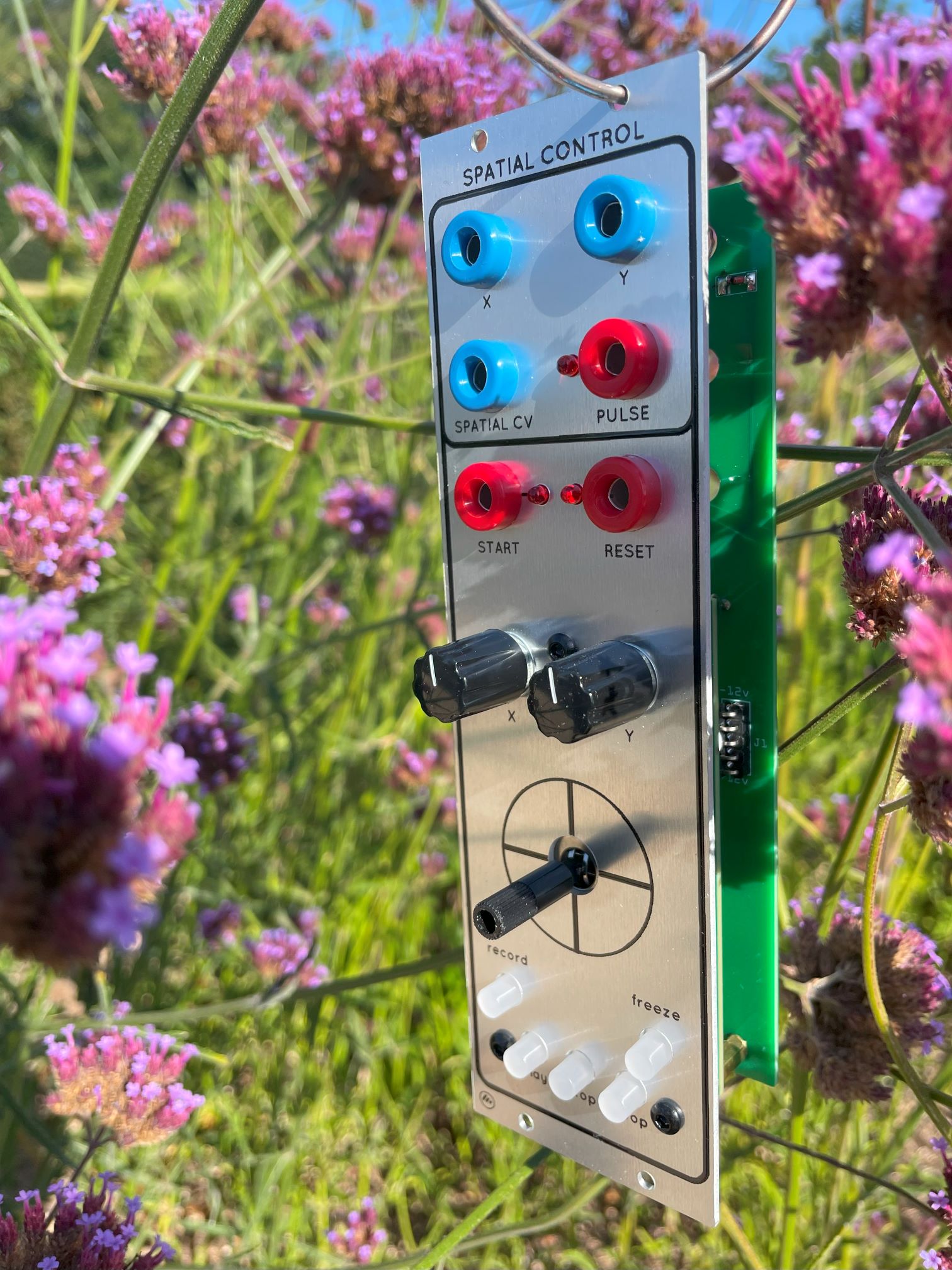

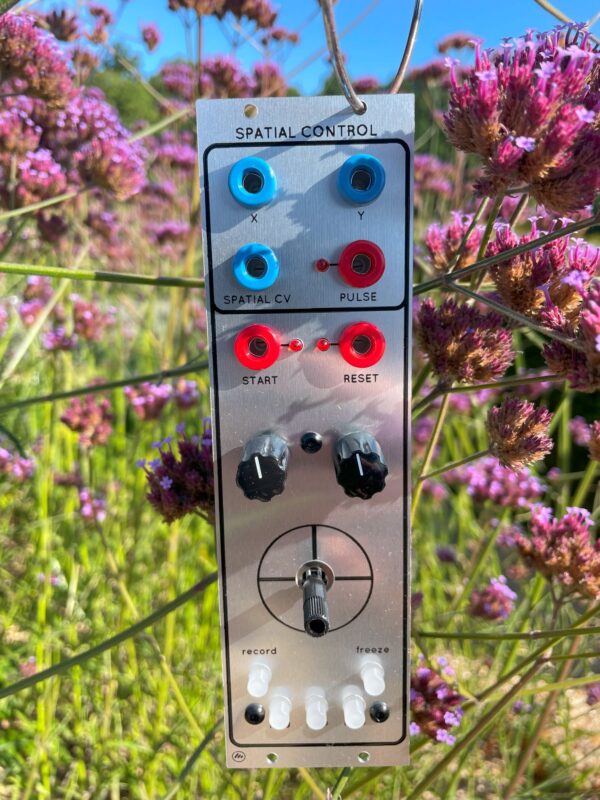

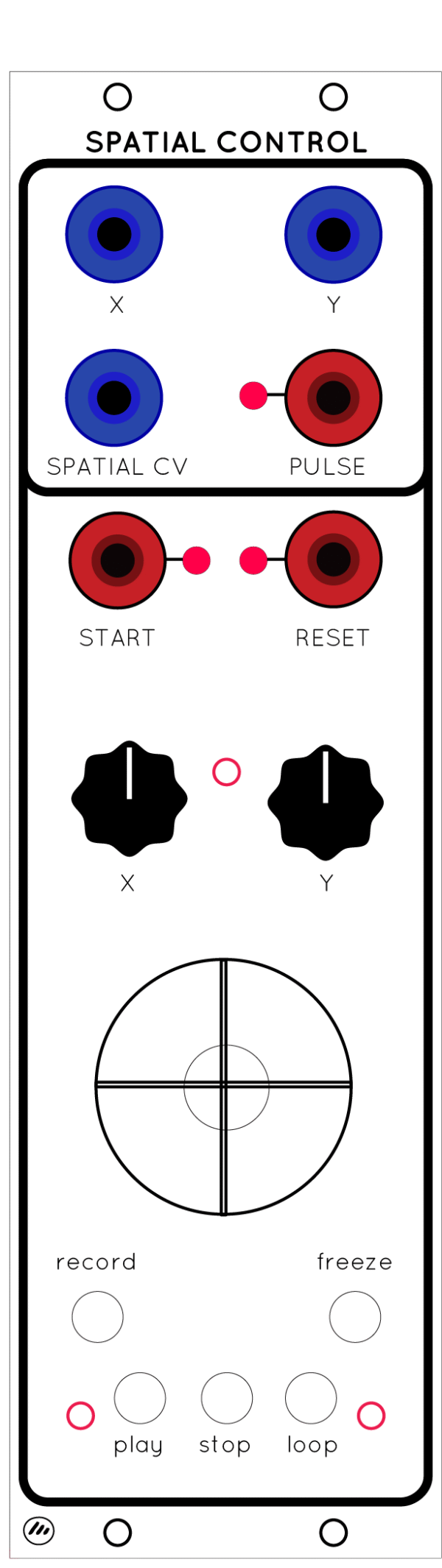

The SPATIAL CONTROL is a compact joystick module with recording function.
The module can record the joystick movement to a length of about one minute. The sequence remains stored in the battery-backed RAM after switching off. When playing back the sequence, the playback speed can be manipulated.
There is a FREEZE function to hold the current joystick position. Also there is an external reset input. In addition, when moving outside the center position, a GATE is set and an additional positive CV voltage (summation of X and Y) is output in dependence. A GATE / START input is used for resetting or recording in sync.
The ranges of the X / Y output voltages is unipolar from approx. 0 to + 10v. Both channels X and Y have a passive attenuator potentiometer, so that the voltage range can also be set lower.
Depth: 25mm
HP: 2 inch
Current Draw: +12: 40mA -12: 35mA
