ADSR2VCA

 300,00

One ADSR and 2 VCA in 2 inch LW format 4U module

Envelope generator with some very useful features. CV is additive for overall length of ADR stages in ADSR mode and add even more length to just the Release stage by adding CV into the Release jack. AR mode allows for snappy to long dynamic rhythm lengths. Very short minimum lengths, self cycling and a maximum output of 5 volts.

Stage Lengths: Attack: 4ms-2 seconds (up to ~ 4 seconds with CV) Decay: 4ms-2 seconds (up to ~ 4 seconds with CV) Sustain (based on gate length) Release 4ms-2 seconds (up to ~ 4 seconds with CV)

Depth: 32mm HP: 2 inch Current Draw: +12: 30mA

Modulargrid

SKU: N/A Category: Tag:

Description

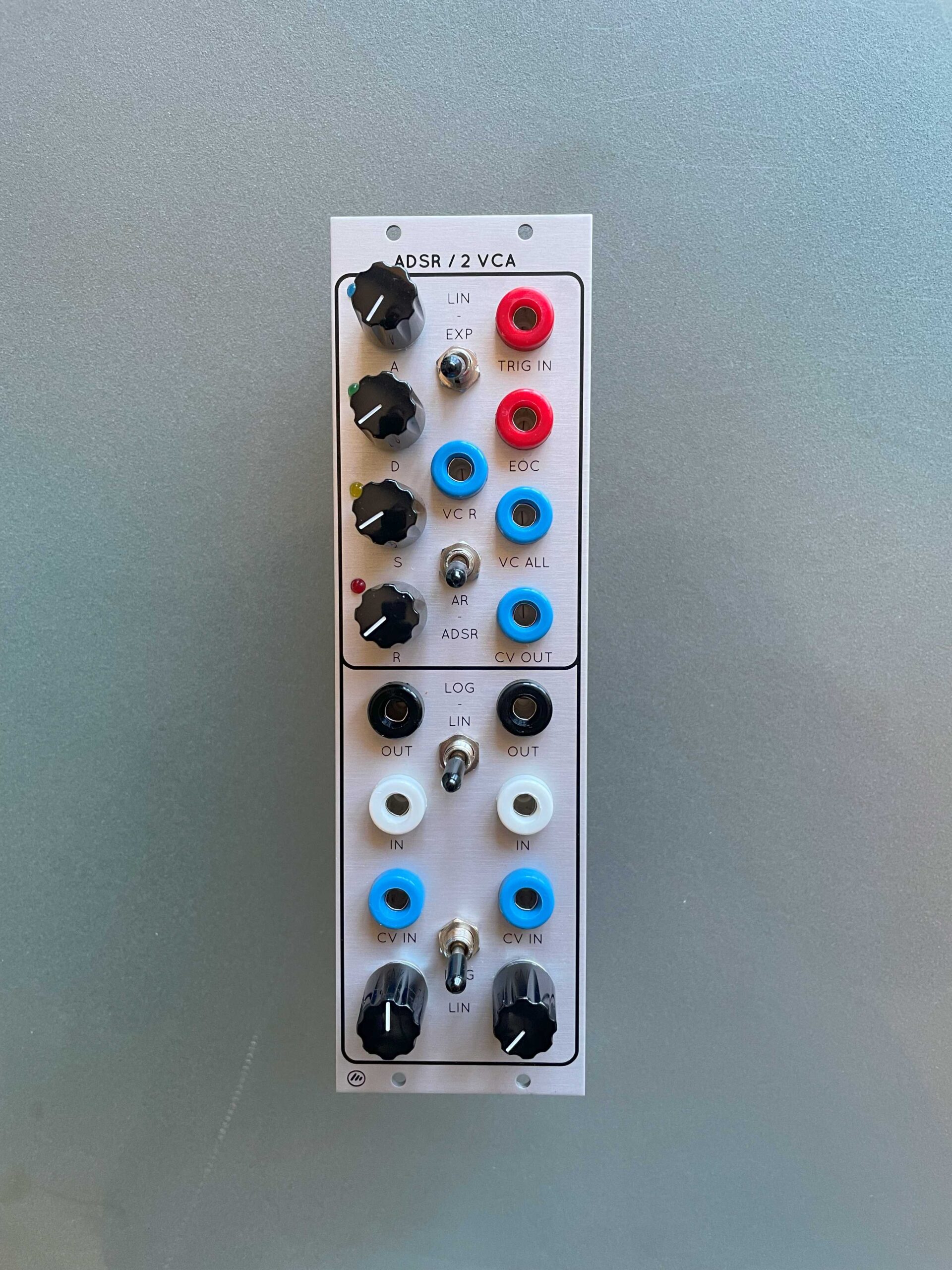

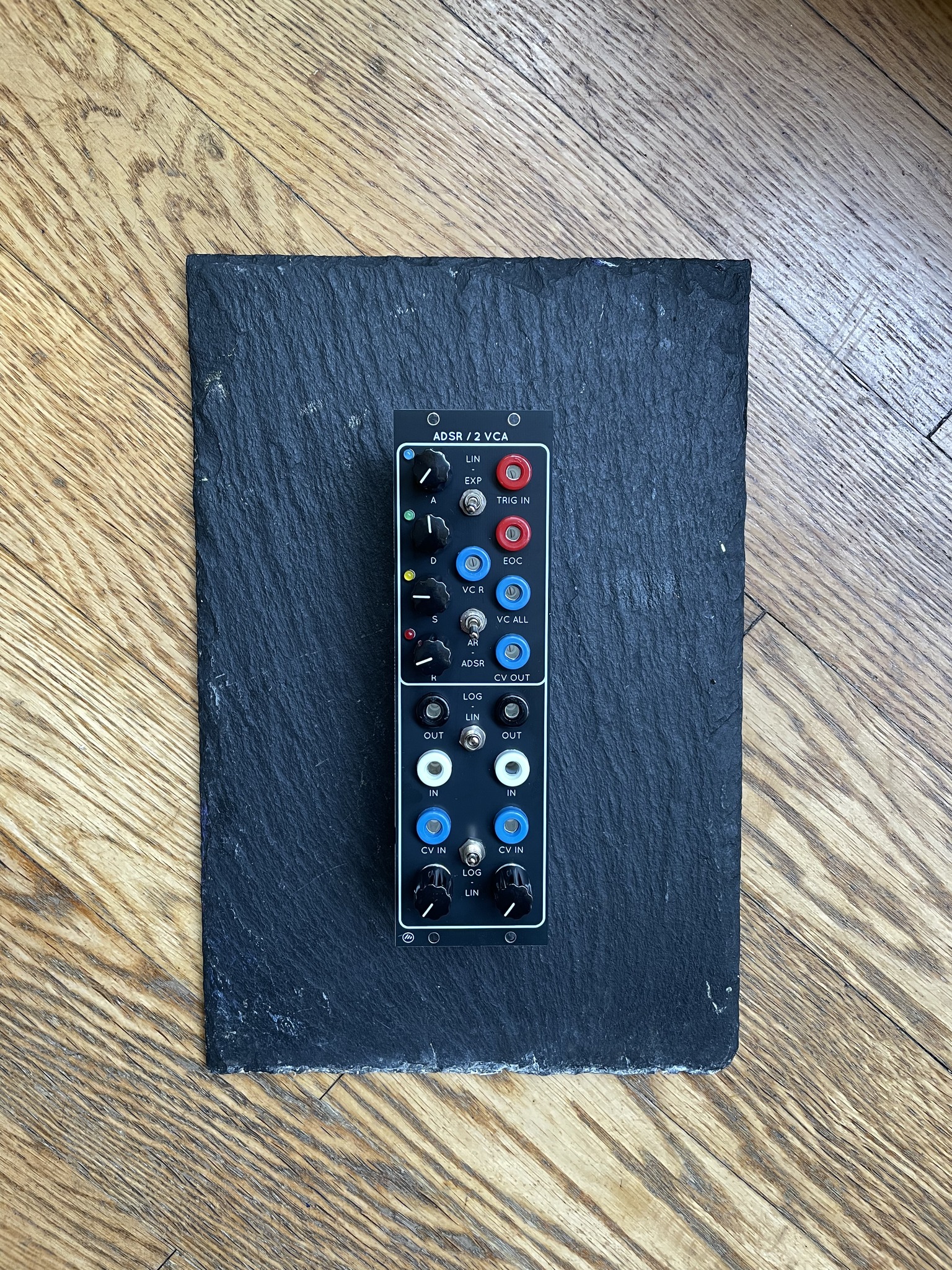

One ADSR and 2 VCA in 2 inch LW format 4U module

Envelope generator with some very useful features. CV is additive for overall length of ADSR stages in ADSR mode and add even more length to just the Release stage by adding CV into the Release jack. AR mode allows for snappy to long dynamic rhythm lengths. Very short minimum lengths, self cycling (connect EOC and TRIG IN together) and a maximum output of 5 volts.

Stage Lengths:

Attack: 4ms-2 seconds (up to ~ 4 seconds with CV)
Decay: 4ms-2 seconds (up to ~ 4 seconds with CV)
Sustain (based on gate length)
Release 4ms-2 seconds (up to ~ 4 seconds with CV)

Dual LOG/LINEAR VCA

VCAs are essential to your synthesizer. They provide ring modulation effects, stereo panning, delayed vibrato, not to mention the normal envelope shaping of your sounds. This VCA works nicely with 10V PP (+/-5V) signal levels.

Pictures:

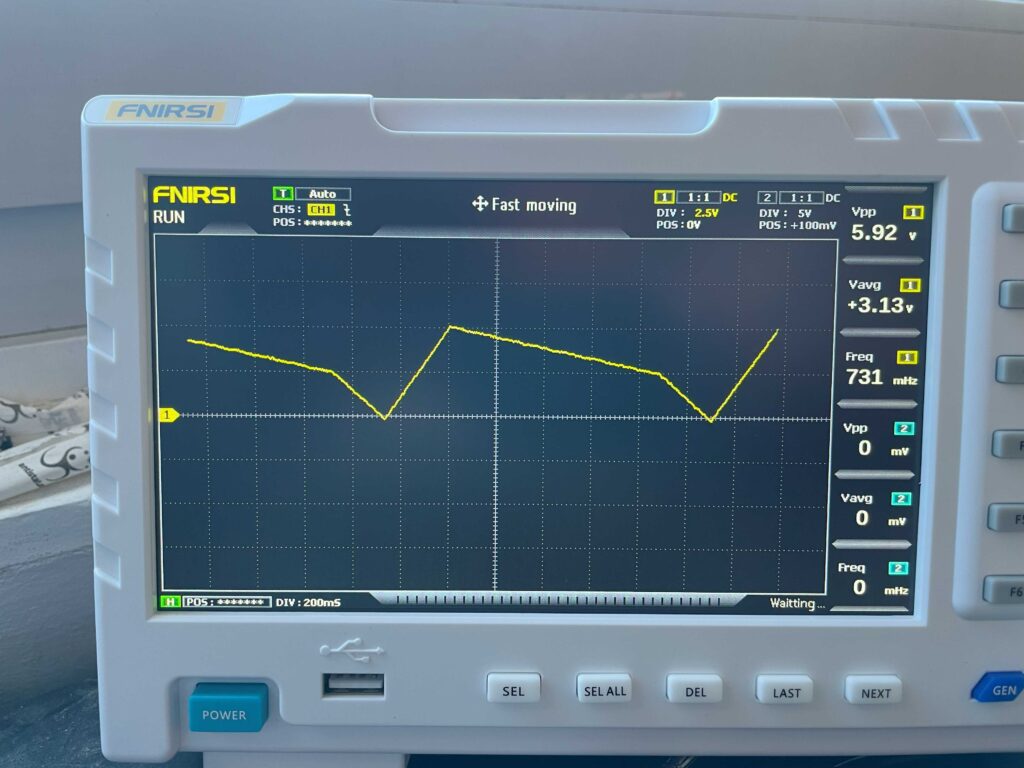

ADSR linear curve

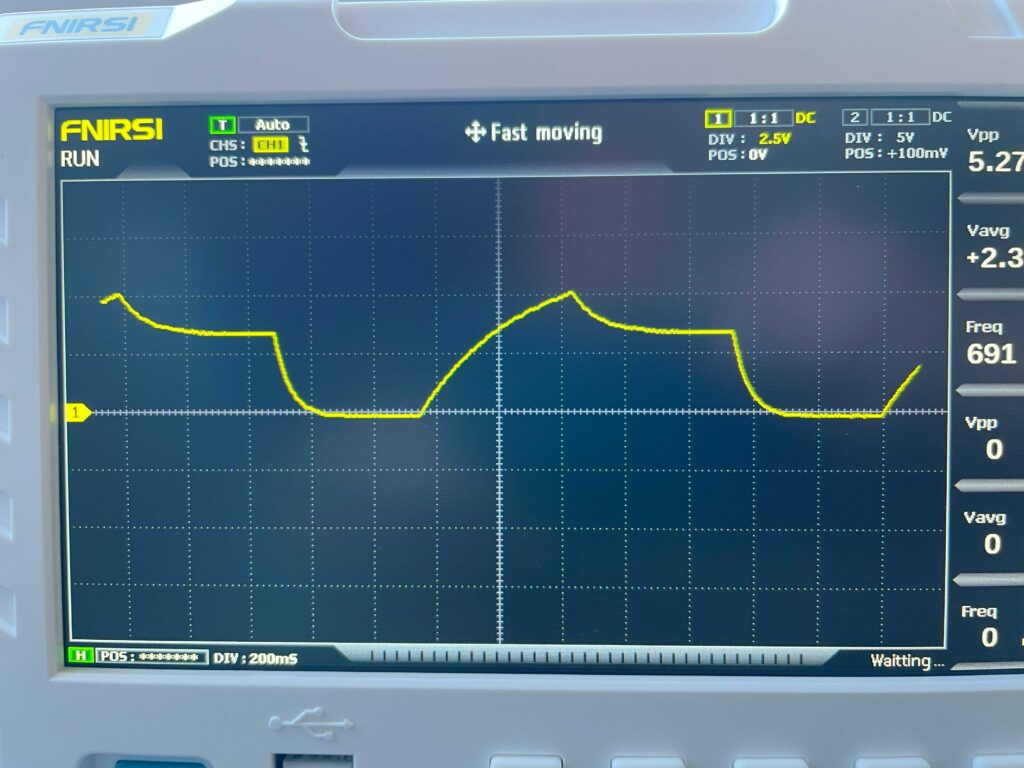

ADSR exponential curve

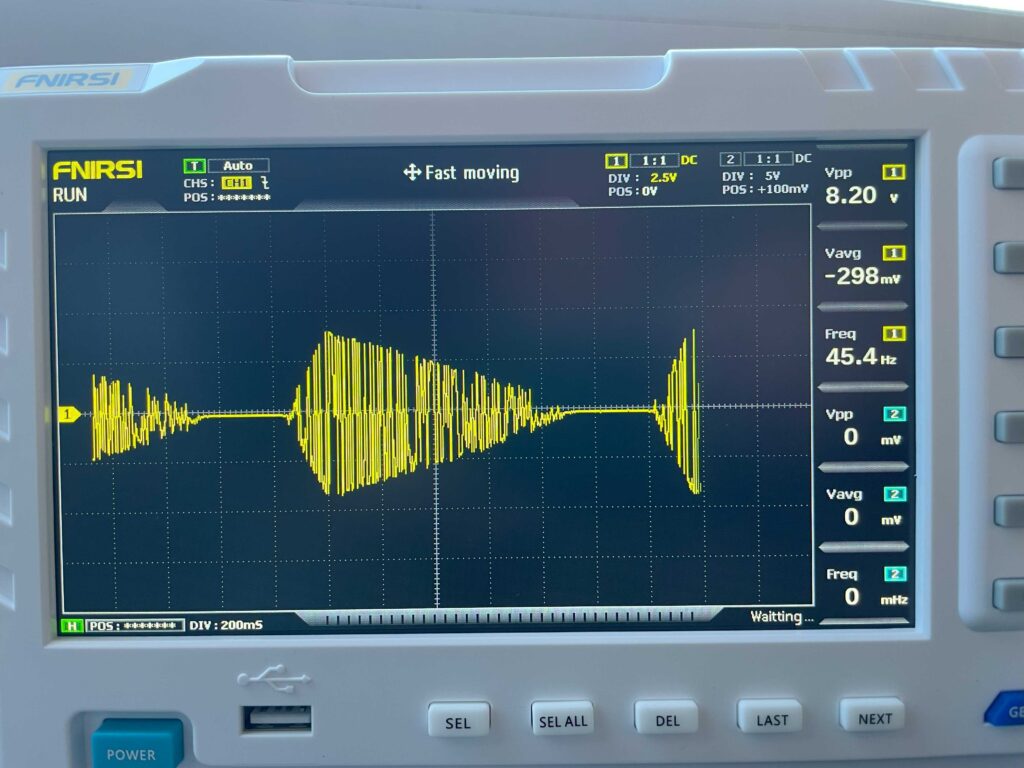

VCA linear curve

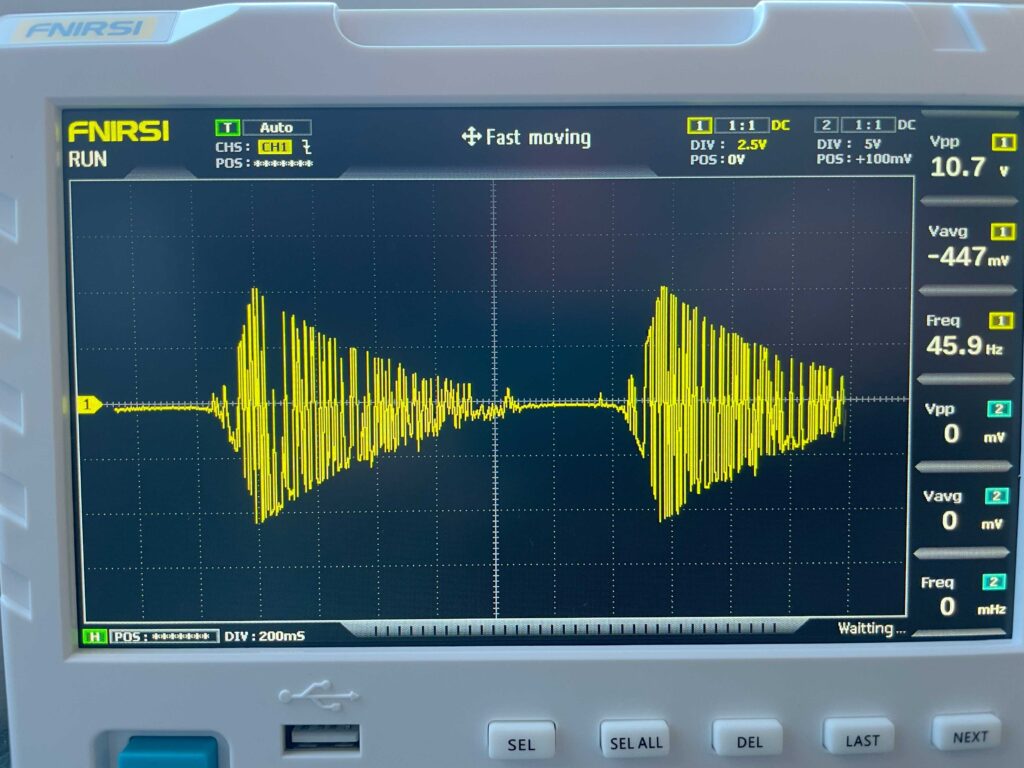

VCA log curve

Depth: 32mm
HP: 2 inch
Current Draw: +12: 50mA -12: 30mA

Additional information

Panel

Black, Silver
