Description

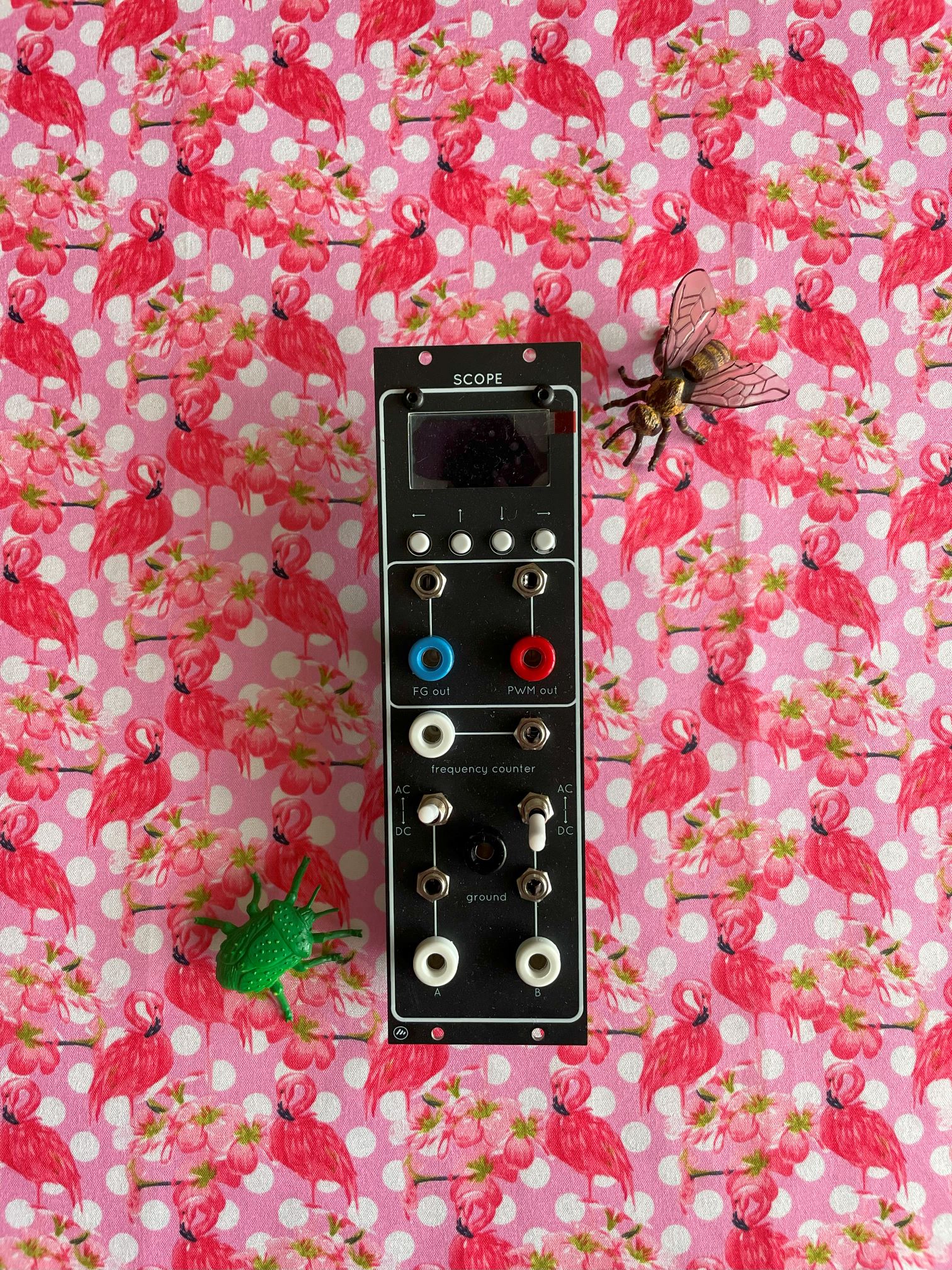

Two-channel oscilloscope for banana and mni jack systems with integrated frequency counter and FFT spectrum analyzers. Above that it can also be used as a generator for waveforms and send a clock signal. A great oscilloscope and analysis tool…and more!
Features
- real-time sampling rate up to 307ksps
- equivalent-time sampling rate up to 16Msps
- up to 2 channels
- FFT display mode
- bandwidth is around 100kHz
- Pulse generator frequency range is from 0.238Hz to 8MHz
- Function Generator frequency range is from 0.01Hz to 9999.99Hz (practically 1kHz)
- Function Generator functions are sine, saw, reverse saw, triangle, noise, sinc5, trapezoid, chainsaw
- settings are saved automatically
- In the real-time sampling mode (not in the equivalent-time sampling mode), the pulse generator and the DDS function generator can be used at the same time with the oscilloscope. That is, you can observe the self generated pulse and the DDS function waveform.
Method of operation

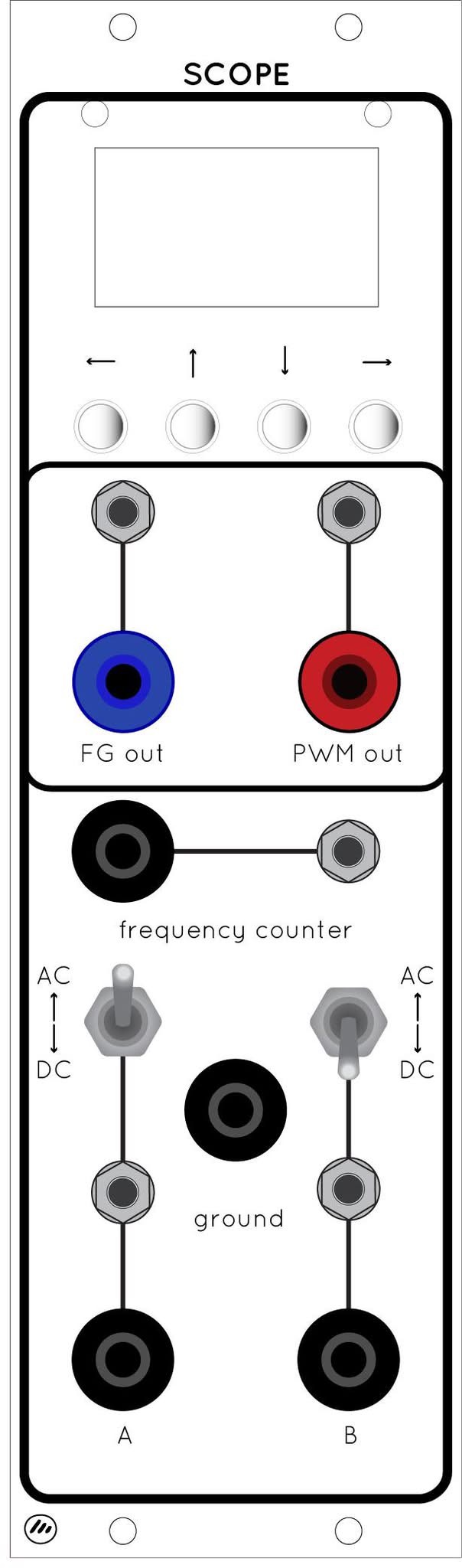

The menu on the right side of the screen consists of 4 pages. Use the Up and Down buttons to move items in the menu. Press the Up button on the top item to switch to the previous page. Press the Down button on the bottom item to switch to the next page. If you press the Right button or Left button at the position of each item, you can change the value of that item or switch it on / off.
If you press the Up button and Down button at the same time regardless of the page, the character display will be turned off and the full screen waveform will be displayed. Press those again at the same time to restore it.

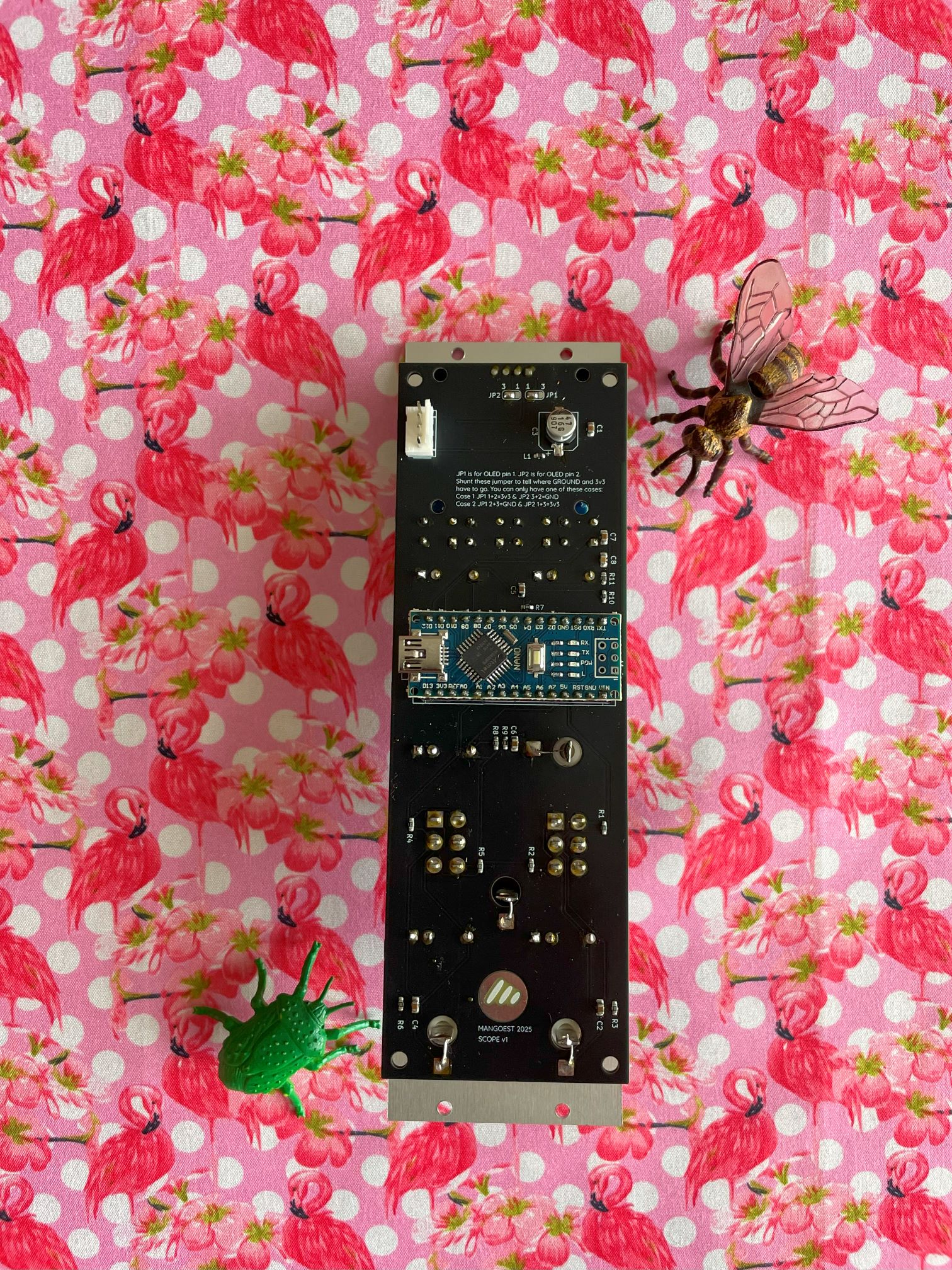

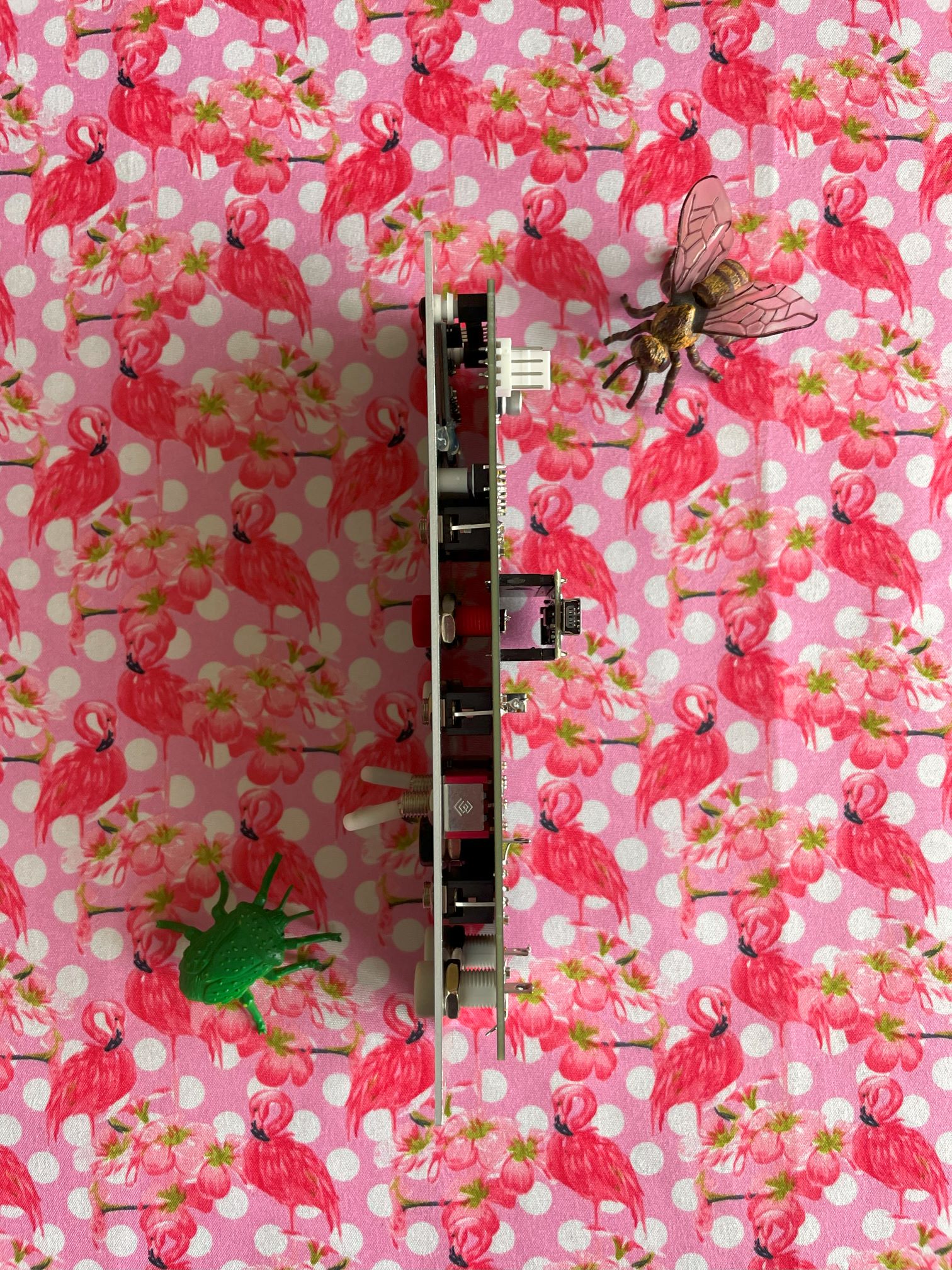

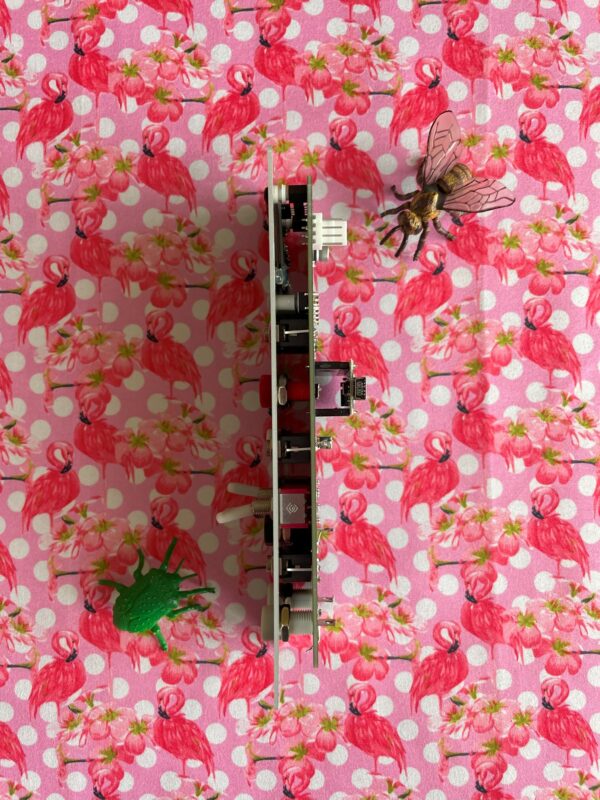

Depth: 25mm
HP: 2 inch
Current Draw: +12: 40mA -12: 0mA
