Description

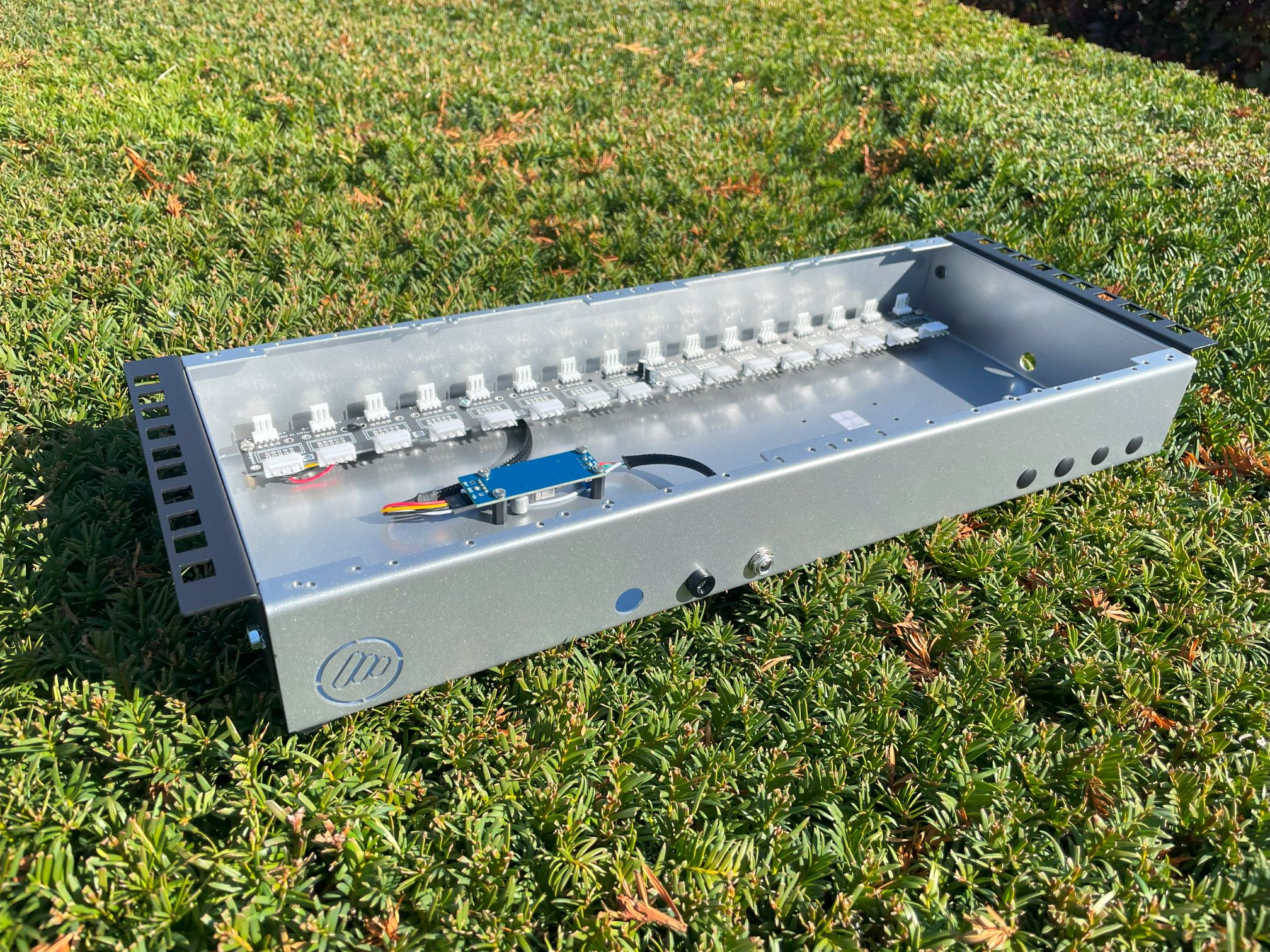

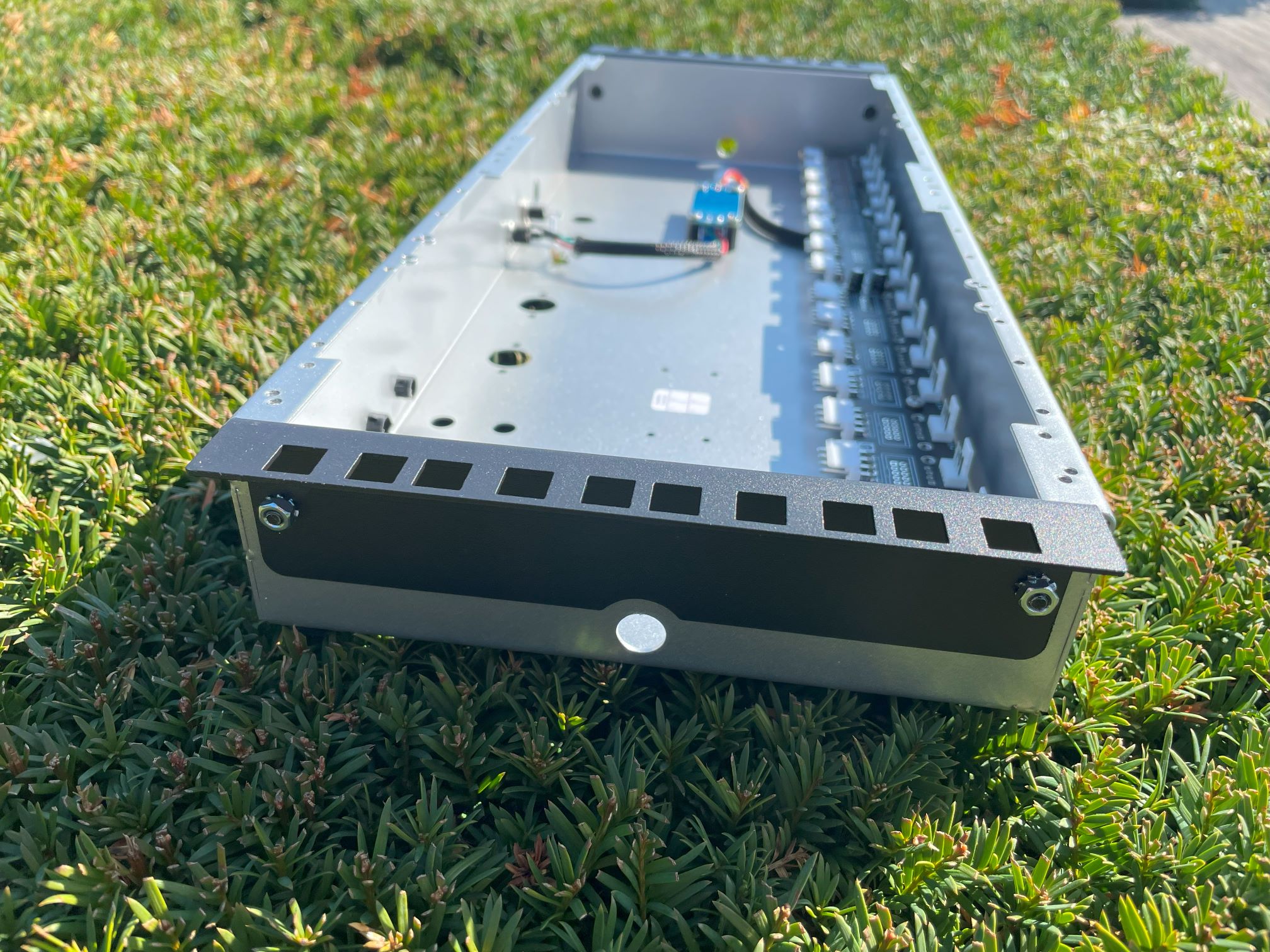

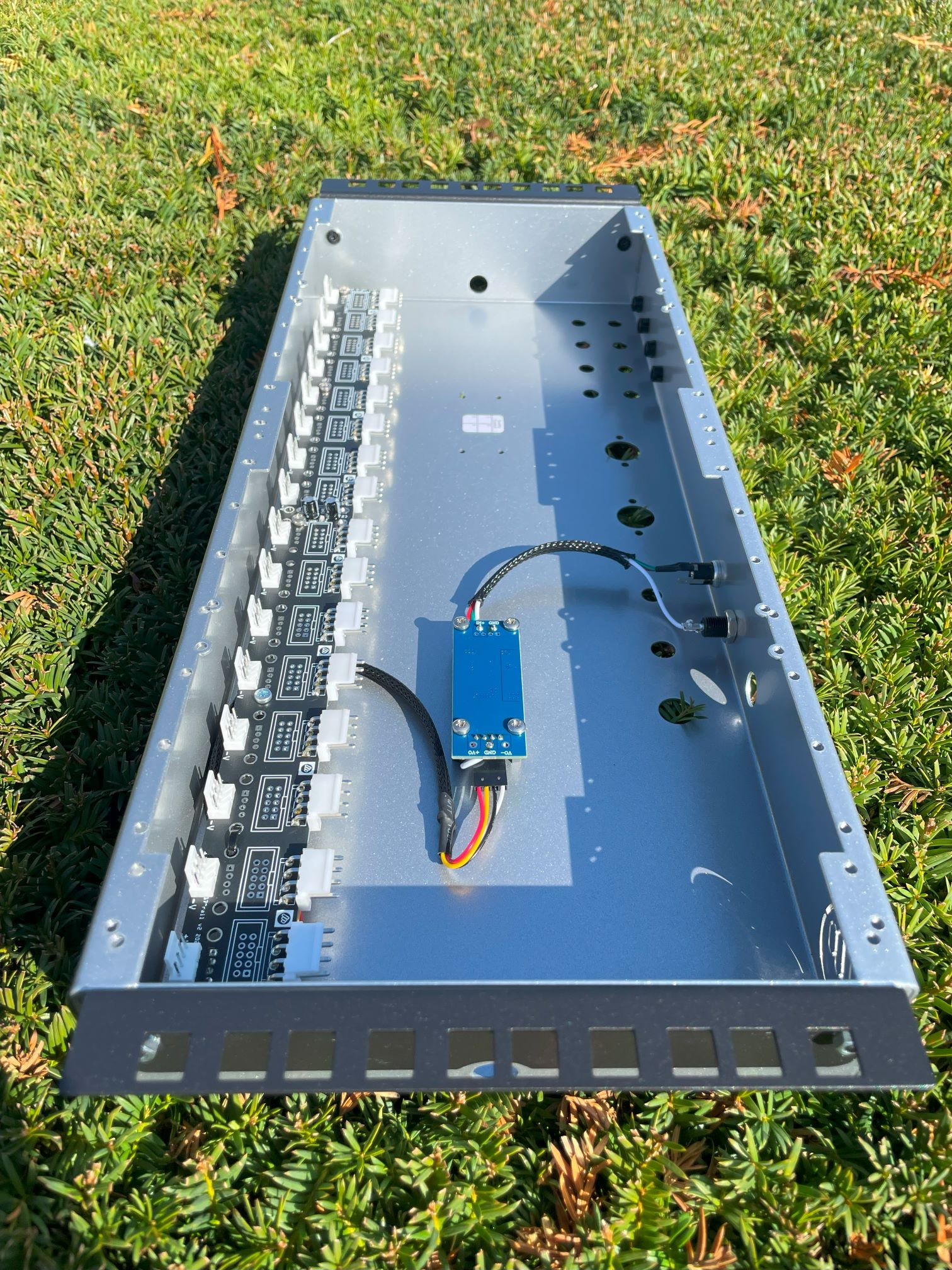

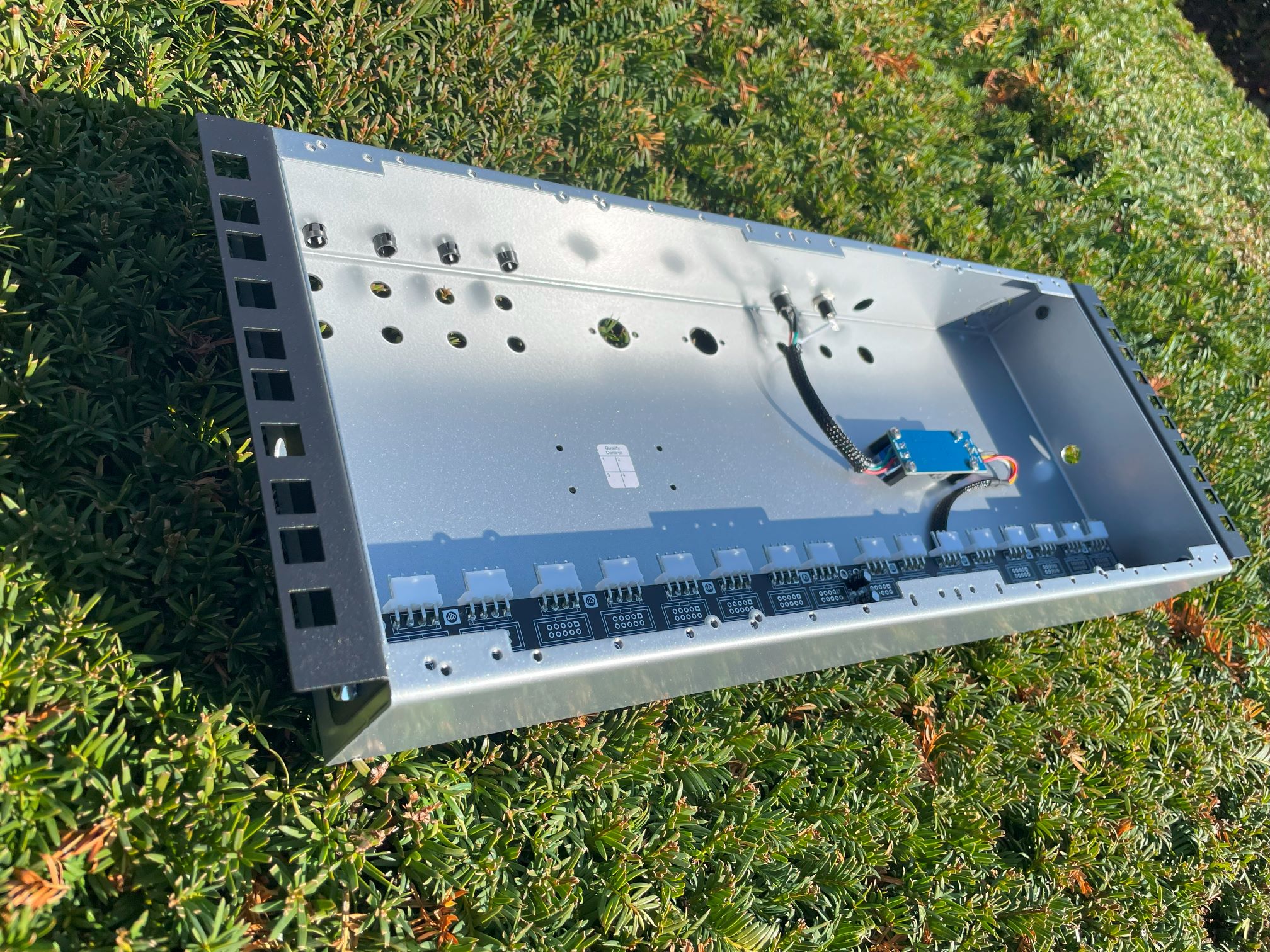

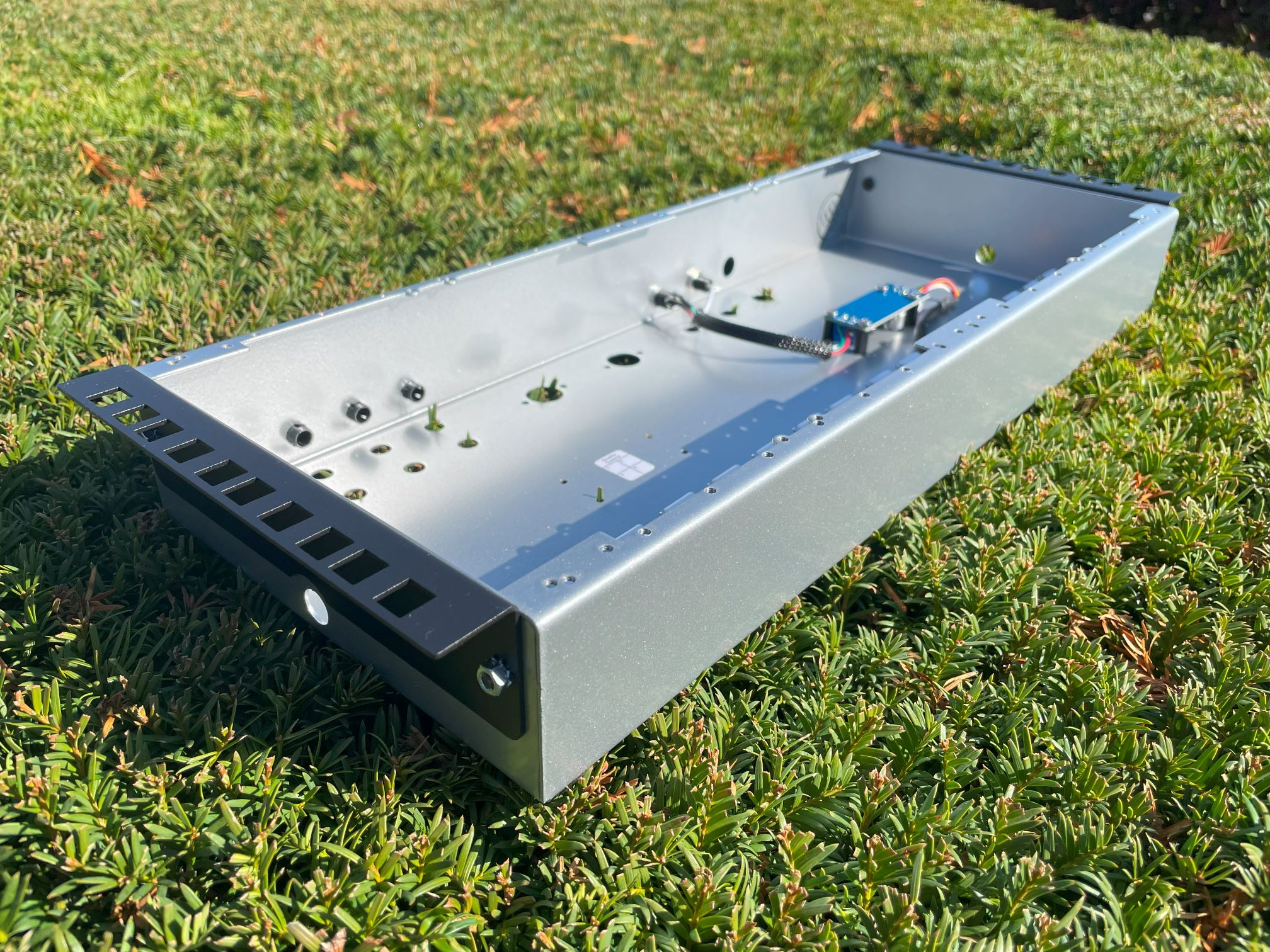

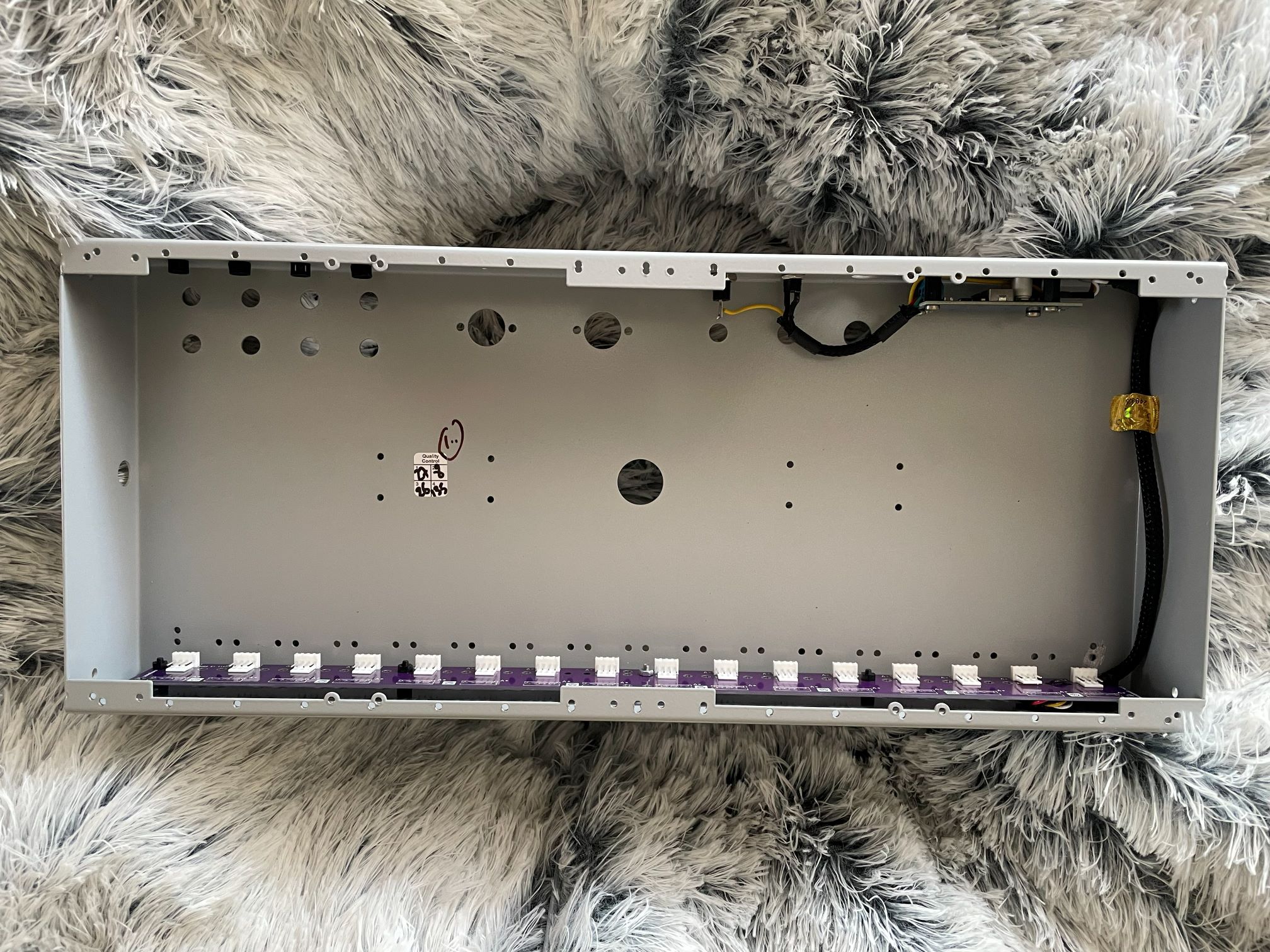

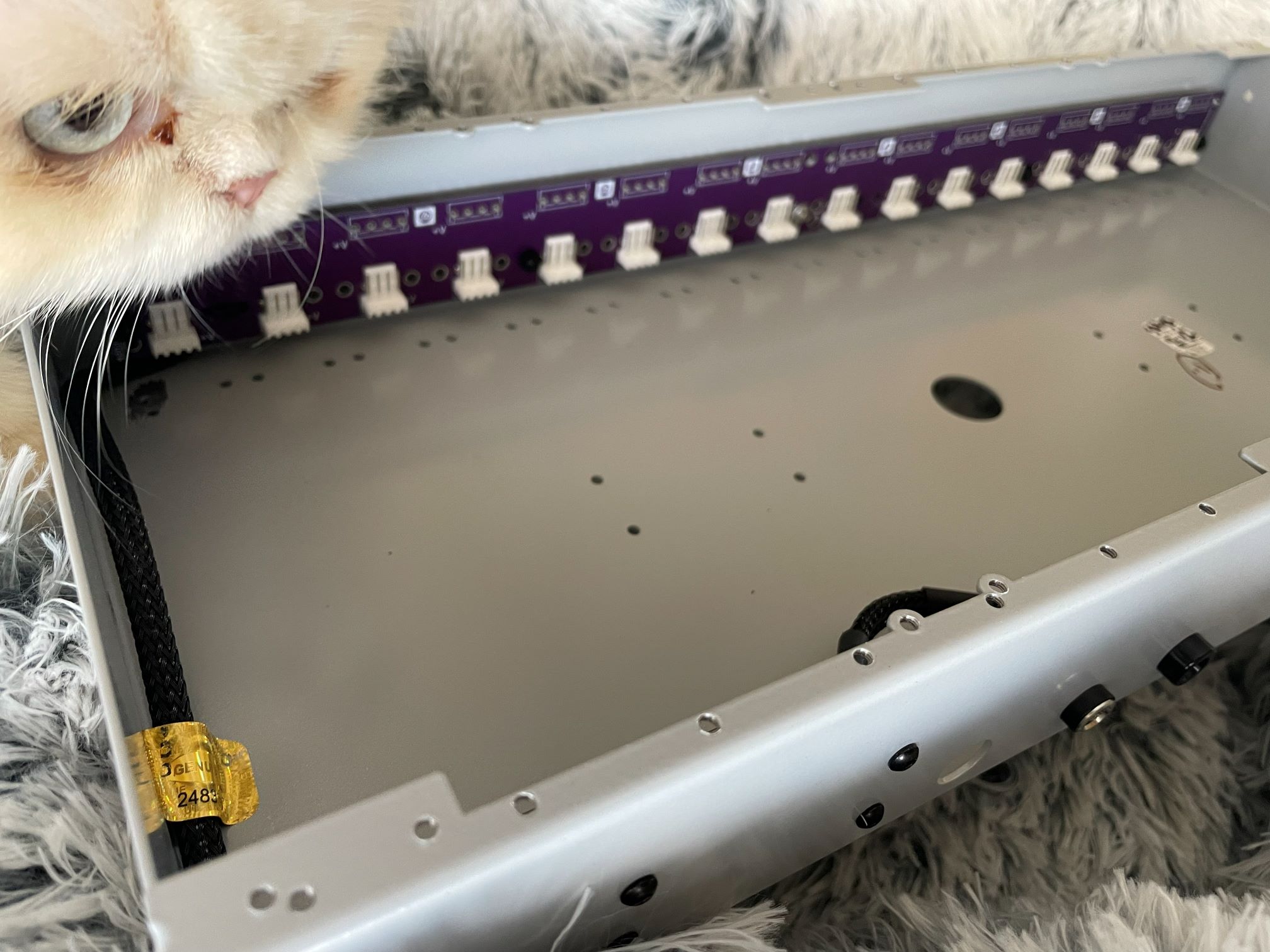

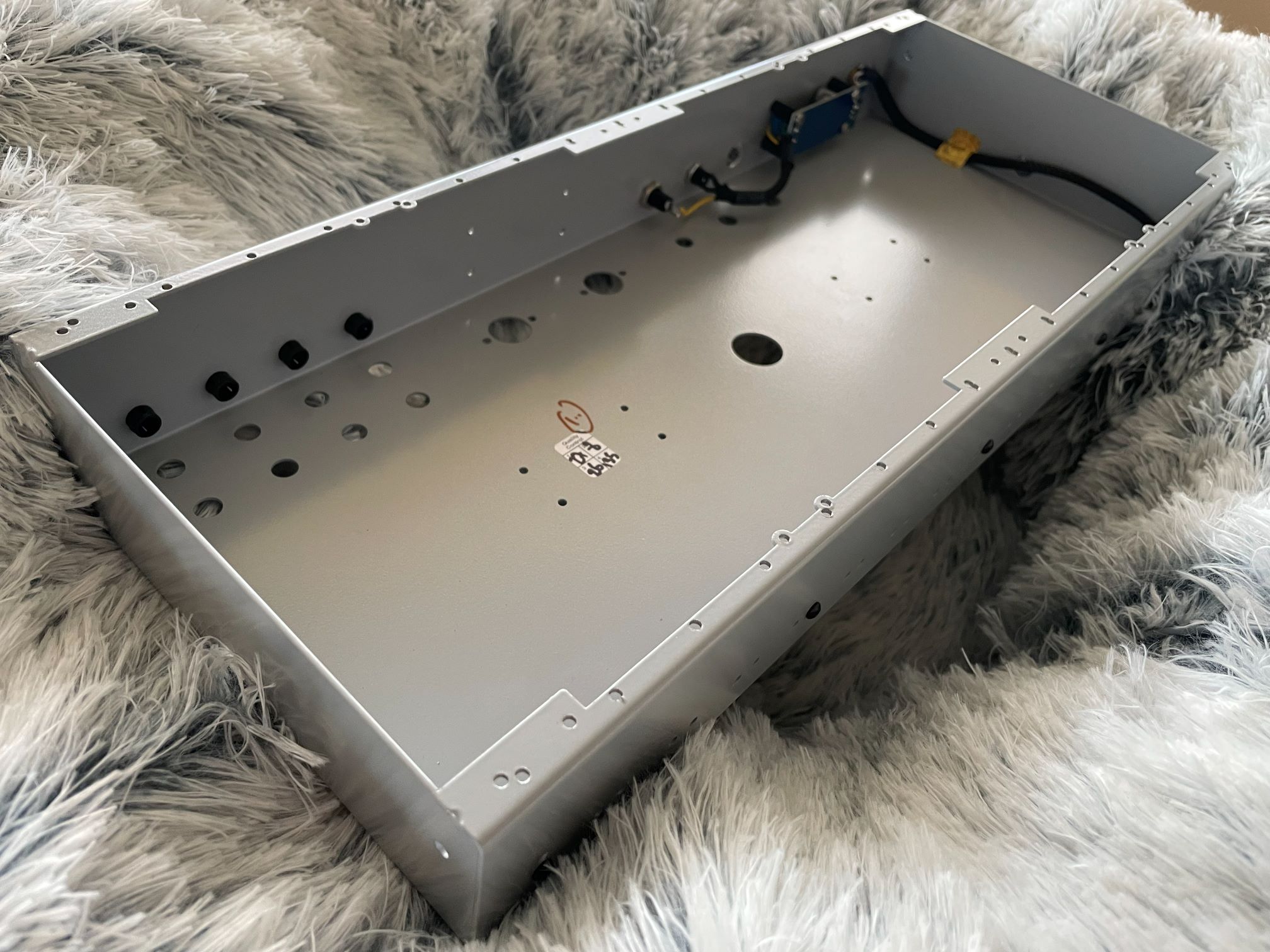

4U powered case for modular synthesizer modules
Compatible with following formats:
– LW (Loudestwarning)
– Random Source
– STS
- Needs a 15v DC power supply center postive 2.1mm barrel
- gives +12v and -12v DC 2A
- 16 MTA100 power headers
- 16 MTA156 power headers when the busboard is mounted flat in the bottom. None when mounted 90° in the front.
- 17 inch of modules space available
- colour Iridium silver
- anti-slip feet provided
- 2 holes available for extra midi din connectors
- 14 holes available for extra audio or banana connectors
- 1 big hole 20mm provided for external PSU connection
- Depth 55mm
You can order the boat with rack ears that are removable. The rack ears are provided with screws and nuts.
