Description

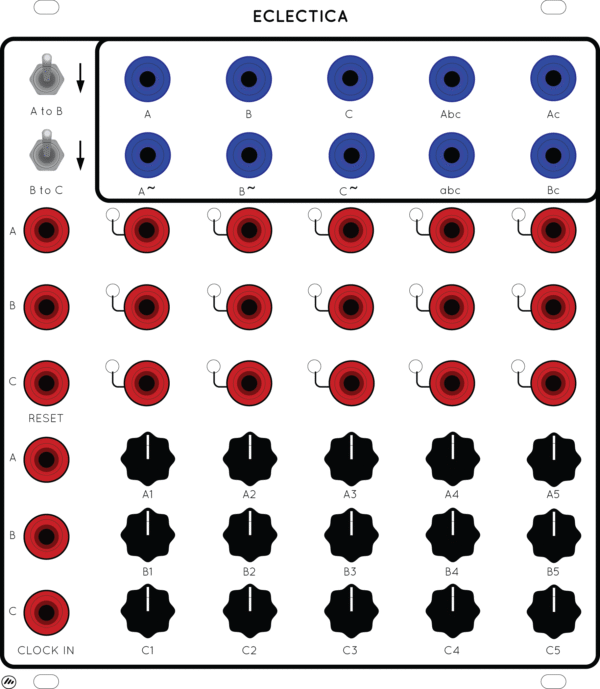

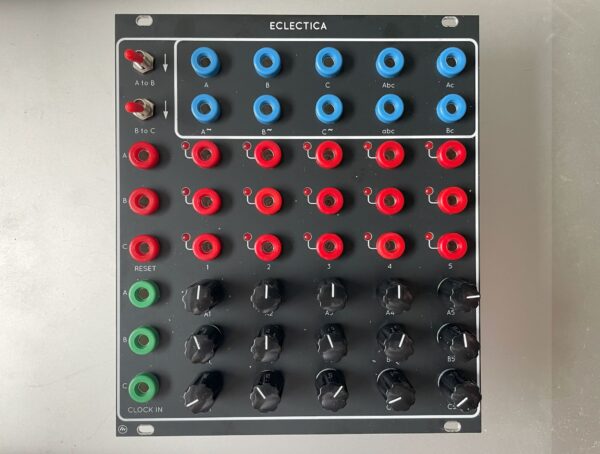

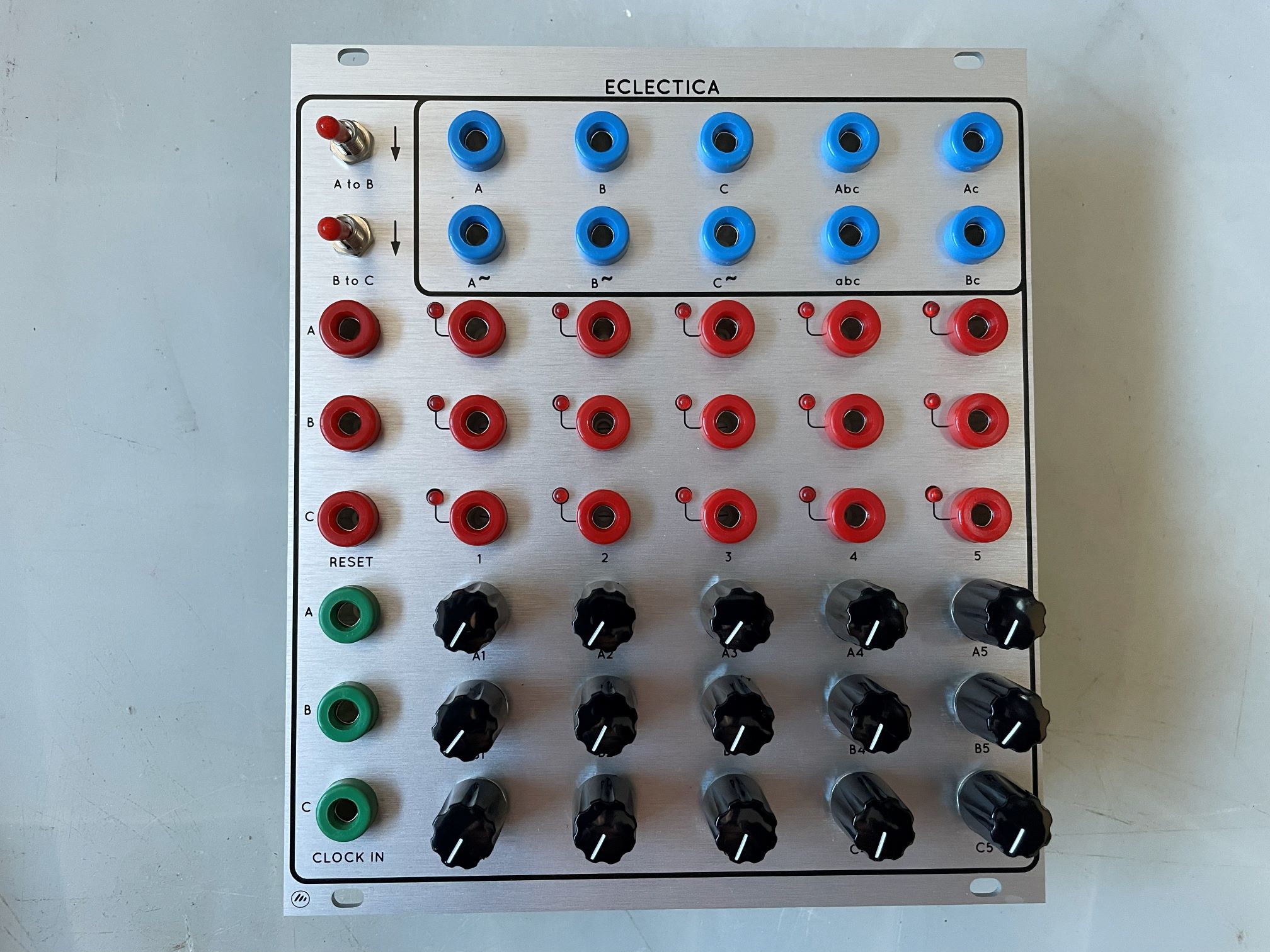

Eclectica is a 3 row, 5 stage sequencer that can be clocked separately or internally. When it is clocked internally via the switches top left, row 2 will only start when row is at the end. Row 3 will then only start when row 2 is at the end. 10 CV outputs, 15 trigger outputs, 3 clock and reset inputs.
Specs:
- 10 CV outputs:
A / B / C go from 0v to 5v
A~/ B~/ C~ go from -5v to +5v
Abc = 100% of A, 50% of B and C
abc = 50% of A, B and C
Ac = 100% of A and 50% of C
Bc = 100% of B and 50% of C - A to B + B to C switches for estafette clocking internally
- 3 Reset inputs
- 3 clock inputs
- 15 trigger outputs
- 15 potentiometers that acts at the same time as an attenuator for the unipolar outputs and as a attenuvertor for the bipolar outputs.
Modulargrid
Technical:
Depth: 33mm
Width: 6 inch
Power: +12v 60mA -12v 25mA
